3M Scott Sabre 1023116 Cylinder Pressure Test Gauge (200/300 Bar)

200-300 BAR

SABRE 1023116

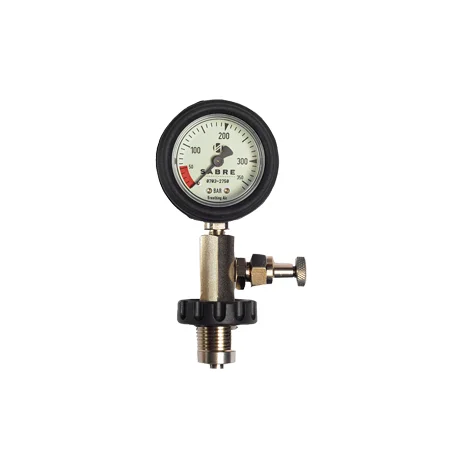

The Scott Sabre 1023116 (now branded as 3M Scott Safety) is a Cylinder Pressure Test Gauge designed for SCBA (Self-Contained Breathing Apparatus) cylinders. It is a critical piece of maintenance equipment used to check the air levels of a cylinder quickly without needing to connect it to a full breathing apparatus set.

Product Specifications & Details

• Function: Checks air pressure in 200 bar and 300 bar cylinders.

• Compatibility: Features an EN144-2 thread to fit standard cylinder valves.

• Construction: * Body: Nickel-plated brass for corrosion resistance.

  • Gauge: 350 bar capacity with a luminous face (glow-in-the-dark) for low-visibility conditions.

  • Features: Includes a manual bleed valve (operated by a finger screw) to depressurize and safely disconnect after testing.

• Safety: Incorporates a safety blow-out vent in the rear of the gauge and a heat/impact-resistant polycarbonate lens.

• Accuracy: $+/- 10$ bar between 40–300 bar.
